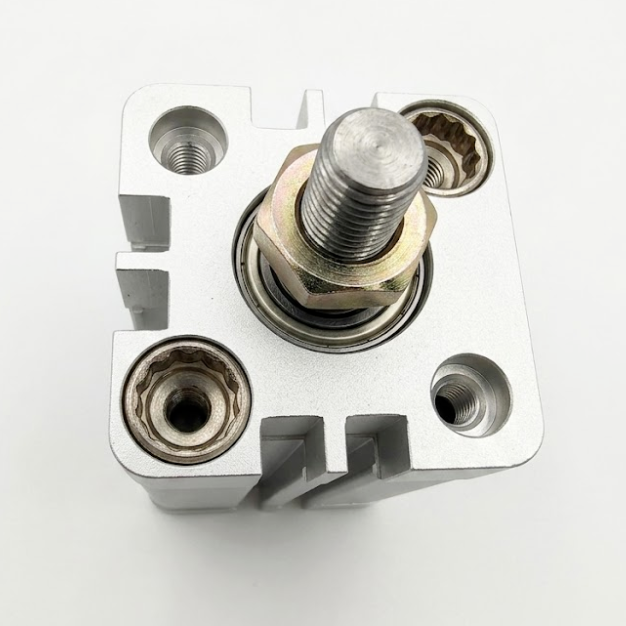

ACE Series Compact Pneumatic Cylinder | ISO 21287 Standard Air Cylinder

Standard Stroke Matrix by Model Type

• Standard Compact (ACE): Bore 12–16 (Max stroke 30–75mm) | Bore 20–25 (Max stroke 100–150mm) | Bore 32–125 (Max stroke 200–300mm).

• Single Acting Models (ASE/ATE): Bore 12 (Max stroke 10mm) | Bore 16–100 (Max stroke 25mm).

• Guided Compact Models (TACE/TACED): Built-in guide rods to completely isolate piston rods from rotational stress. Maximum strokes up to 100mm.

• Adjustable Stroke Double Rod (ACEJ): Allows customizable stroke adjustment ranges including 10mm, 20mm, 30mm, 40mm, 50mm, 75mm, and 100mm.

Core Product Advantages

1. Massive 50% Space Optimization: Its compact footprint seamlessly integrates into tight enclosures, saving significant installation space over conventional ISO 15552 designs.

2. Ultra-Durable Hard-Anodized Barrel: The internal wall of the cylinder block undergoes an advanced hard-anodizing treatment post-machining, guaranteeing great wear resistance and prolonged operational lifespans.

3. Advanced Double-Lip Bidirectional Seal: The piston rod utilizes a structural bidirectional seal with an integrated oil-storage function, ensuring low starting pressures and stable sealing.

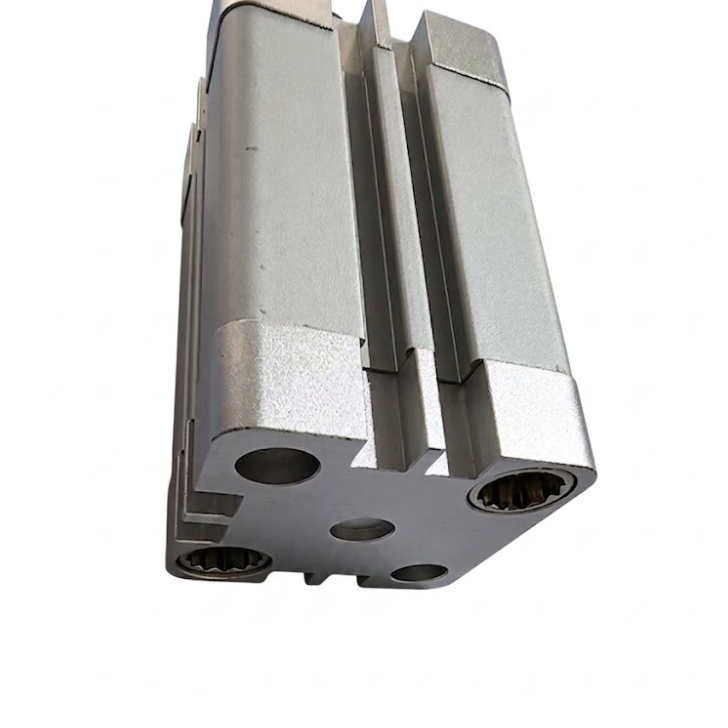

4. Integrated Sensor Grooves: Three sides of the aluminum extrusion profile feature built-in proximity sensor slots, allowing flush sensor mounting without extra brackets.

5. Robust Threaded End Caps: Front and rear caps are secured via high-strength screw-threaded joints, drastically improving maintenance accessibility and body strength.

Industrial Application Fields

• Lithium-ion Battery Pack Production: High-frequency cell sorting, positioning jigs, and clamping modules.

• Semiconductor Assembly Lines: Compact electronic component pick-and-place grippers requiring absolute mechanical stability.

• Automated Medical Devices: Space-confined laboratory liquid handling axes and pharmaceutical packing gear.

• Precision Testing Fixtures: Precise alignment of test probes against delicate workpieces without velocity shock.

Technical FAQ & E-E-A-T Trust Factors

• Q: Can these cylinders handle non-lubricated air supply networks?

  • A: Yes. The PRIUS ACE series features high-grade factory pre-lubrication, permitting highly efficient performance on dry, non-lubricated compressed air grids.

• Q: How do I order a model with position feedback capabilities?

  • A: Add the suffix "S" in the magnetic code slot (e.g., ACE20x30-S) to specify an internal permanent magnetic ring, compatible with flush-mounted proximity switches.

• Q: Are custom mounting brackets available?

  • A: Yes, PRIUS provides full accessory support including Flanges (FA/FB), Foot brackets (LB), Clevis mounts (CA/CB/CR), and Trunnions.
